Circulating Single

Basic Info.

Max.Head	>150m
Max.Capacity	>400 L/min
Driving Type	Motor
Impeller Number	Single-Stage Pump
Working Pressure	Middle Pressure Pump
Influent Type of Impeller	Single Suction Pump
Position of Pump Shaft	Horizontal Pump
Pump Casing Combined	Horizontal Split Pumps
Mounting Height	Suction Centrifugal
Impeller	Closed
Usage	Pump, Pumps, Condensate Pump, Circulating Pump
Standard	API610
Transport Package	Plywood Box
Specification	1000.00cm * 2000.00cm * 1000.00cm
Trademark	haishi
Origin	Jiangsu, China
HS Code	8413709990
Production Capacity	5000

Product Description

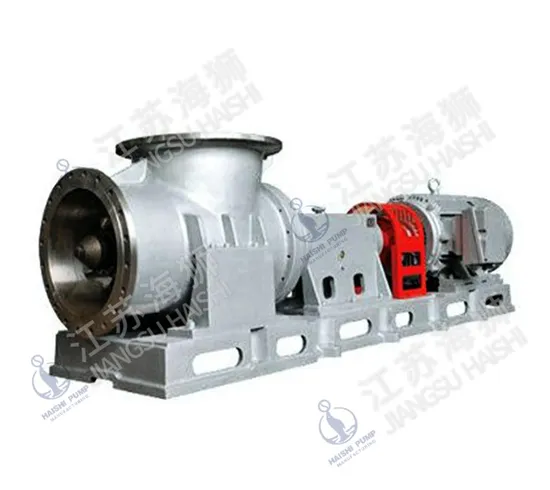

ZA ZAO Series petrochemical process pumps are designed and manufactured in accordance with API 610 (8th edition).Scope of application
For transporting clean or slightly granular, cold or hot, chemically neutral or corrosive liquids. Main use It is used in oil refineries, petrochemical industry, coal processing and cryogenic engineering. It is used in the chemical industry, the fiber industry and the general processing industry, especially in the paper and pulp industry and the sugar industry. It is used in the water industry, especially in desalination plants. Used in heating and air conditioning systems. Used in fossils and nuclear power plants. Used in protection projects. It is used in the Marine and Marine industries.

Operational data
Size: 25-400mm Flow rate (Q) : up to 2600 m/h Head (H) : up to 250m Operating pressure (P) : up to 2.5Mpa Operating temperature (t) : -20ºC +180ºC Center support line temperature: -20ºC~+450ºC

Company profile

5 DECADES Established in 1977, long history of pump making brings us rich experience, making us a professional pump manufaturer and ranking us as a famous pump factory in China. 500+ STAFFS Well trained and professional engineers and workers guarantees the in time delivery and offers professional pump solutions to our clients. 100000m2 WORKSHOPS Large and modernized workshops and facilities enables the efficient and strict QA&QC procedures and therefore assures the qualified products. 20+ BRANCHES Established 20+ branches offices and subsidiaries throughout China, they offer closer and in time services to our clients. And our overseas customers are from different places of the world. 3000+ CLIENTS Own more than 3000 clients both in China and overseas, which is an approval of our product quality and a praise of our service. 20+ PATENTS Gained more than 20 patents, which is a strong proof of the ability of R&D and a backup of product quality.


FAQ

Q: How long is your factory history?A: Our factory was established in 1977.Q: How many staffs does your factory have?A: We have around 500 staffs.Q: What international certificates does your factory have?A: We have API, CE, ISO9001...Q: Does your factory have foundry for yourself?A: We have our own foundry in our factory.Q: What after sales service your factory can provide?A: Generally, most of the issues can be solved by free guidance of video calls. But paid site service is also available.Q: What is your product warranty?A: 12 months since commissioning or 18 months after shipment,whichever is earlier.Q: What is your factory's annual output capacity?A: Around 20,000 pcs of various type of pumps.......
