ISO9001 Products Sanitary Centrifugal Horizontal Centrifugal Pump for Flammable and Explosive Materials

• Overview
• Product Description
• Company Profile
• FACTORY DISPLAY
• OUR CUSTOMERS
• OUR CERTIFICATE
• Packaging & Shipping
• FAQ

Overview

Basic Info.

Model NO.	PBG-50
Max.Head	10m-80m
Max.Capacity	50L/M-10000L/M
Driving Type	Motor
Impeller Number	Single-Stage Pump
Working Pressure	Middle Pressure Pump
Influent Type of Impeller	Single Suction Pump
Position of Pump Shaft	Horizontal Pump
Pump Casing Combined	Horizontal Split Pumps
Mounting Height	Suction Centrifugal
Impeller	Closed
Usage	Pump, Pumps, Condensate Pump, Slurry Pump, Circulating Pump
Customized Support	Customized Support
Color	Custom
Pressure	Low Pressure
Speed	2900/1450/960rpm
Material	304/316/Fsb/PVDF/PP
Sealing Type	Mechanical Seal
Industry Certification	ISO9001
Transport Package	Wooden Box
Specification	customization
Trademark	HK-ZQZB-PUMP
Origin	Tianchang City, Chuzhou, Anhui, China
HS Code	8413709990
Production Capacity	300pieces/Month

Packaging & Delivery

Package Size180.00cm * 80.00cm * 100.00cm Package Gross Weight430.000kg

Product Description

Anhui Huanke Pump Valve Co., Ltd. is a pump and valve enterprise integrating scientific research, development, production, sales and service. It is equipped with advanced processing and testing equipment and offers a complete range of products in various specifications.

Our company's products feature excellent corrosion resistance and a wide variety of specifications, which can meet the needs of various environments with strong corrosivity, particulate media, flammability, explosiveness, toxicity, and organic solvents. They are widely used in fermentation beverages, bioengineering, brewing, petrochemicals, chemicals, metallurgy, medicine and other fields. Our main products include stainless steel centrifugal pumps, self-priming pumps, stainless steel magnetic pumps, fluorine-lined pumps, screw pumps, sewage pumps, pipeline pumps, stainless steel canned motor pumps, etc.


Company Fax: 0550-785197

Q: Are you trading company or manufacturer?
A: We are manufacturer. Our factory is located in Chuzhou, Anhui.

Q: Can you customize the pumps?
A: Yes, we can.You can send us application parameter or fill out the form that we provided, then we will select or design the product that works best for you and your business.

Q: What is your payment terms?
A: Payment ≤ 1000 USD, 100% in advance.
Payment > 1000 USD, 50% T/T in advance, balance before shipment.

Q: Do you have factory?
A: Yes, we also have a professional team.

Q: What international certificates does your factory have?
A: We have API,SGS, ISO9001...

Q: What is your product warranty?
A: 12 months since commissioning or 18 months after shipment,whichever is earlier.

Q: What after sales service your factory can provide?
A: Generally, most of the issues can be solved by free guidance of video calls. But paid site service is also available.

Product Description

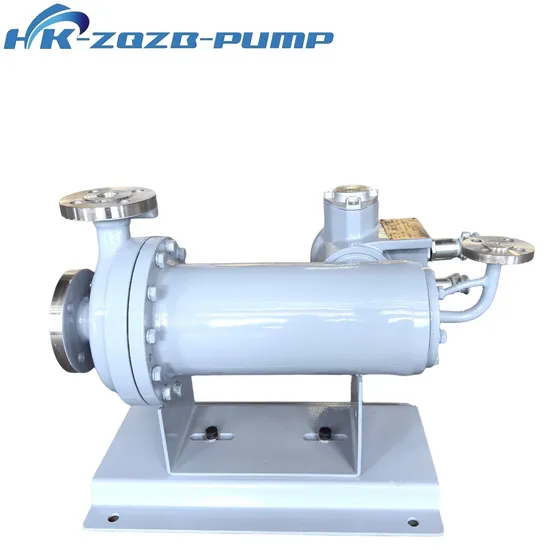

Shield Pump

Type	Flow (m³/h)	Head (m)	Rotate Speed (r/min)	Motor Power (kw)
HK65 - 50 - 125	30	20	2900	4
	28	17	2900	3
	18	10	2900	1.1
	14	8	2900	0.55
HK65 - 50 - 160	30	32	2900	7.55
	28	29	2900	5.5
	18	25	2900	3
	14	17	2900	2.2
HK65 - 50 - 200	34	50	2900	11
	30	46	2900	11
	26	36	2900	7.5
	22	29	2900	5.5
HK65 - 50 - 250	38	85	2900	22
	34	80	2900	22
	30	65	2900	15
	26	50	2900	11
HK65 - 40 - 315	46	127	2900	55
	44	120	2900	55
	40	97	2900	45
	34	78	2900	30
HK80 - 65 - 125	50	20	2900	5.5
	45	18	2900	4
	40	16	2900	4
	32	10	2900	2.2
HK80 - 65 - 160	55	32	2900	11
	50	28	2900	7.5
	46	24	2900	7.5
	40	18	2900	4
HK80 - 65 - 200	65	56	2900	18.5
	60	50	2900	18.5
	55	37	2900	11
	40	29	2900	7.5
HK80 - 65 - 250	65	81	2900	37
	60	76	2900	30
	55	64	2900	22
	45	50	2900	18.5
HK80 - 50 - 315	80	140	2900	75
	75	136	2900	75
	70	110	2900	55
	65	85	2900	45
HK50 - 32 - 125	12.5	20	2900	2.2
	10.5	18	2900	1.1
	8	15	2900	0.75
	6.5	8	2900	0.5
HK50 - 32 - 160	20	32	2900	5.5
	18	29	2900	5.5
	15	25	2900	2.2
	13	20	2900	2.2
HK50 - 32 - 200	20	50	2900	7.5
	18	45	2900	7.5
	15	40	2900	5.5
	13	32	2900	5.5
HK50 - 32 - 250	20	80	2900	15
	18	75	2900	15
	15	65	2900	11
	13	55	2900	7.5
HK50 - 40 - 200	15	65	2900	11
	13	60	2900	11
	10	50	2900	7.5
	7	40	2900	4
