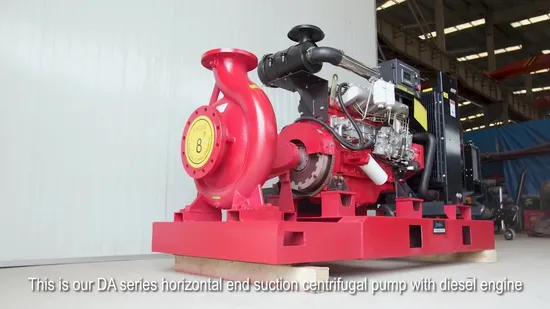

Diesel Engine Single Stage Horizontal End Suction Centrifugal Pump

• Overview
• Product Description
• Product Parameters
• Detailed Photos
• Company Profile

Overview

Basic Info.

Model NO.	DA32/13
Max.Head	30-50m
Max.Capacity	300-400 L/min
Driving Type	Diesel Engine Driven
Impeller Number	Single-Stage Pump
Working Pressure	Low Pressure Pump
Influent Type of Impeller	Single Suction Pump
Position of Pump Shaft	Horizontal Pump
Pump Casing Combined	Centrifugal Pump
Mounting Height	Suction Centrifugal
Impeller	Closed
Usage	Pump, Pumps, Circulating Pump, Irrigation Pump
Pump Material	Cast Iron or Stainless Steel
Impeller Material	Cast Iron or Stainless Steel
Rotation Speed	1450/2900/1750/3500rpm
Accessories	Trailer, Silence-Box etc
Seal Type	Mechanical Seal, Packing Seal
Diesel Engine Type	Water Cooler Engine
Application	Irrigation Pump, Fire Fighting Pump
Trailer	Two or Four Wheels Trailer
Pump Spare Parts	Pump Casing, Impeller, Seal, Bearing, Shaft, etc
Colors	Red, Blue etc
Transport Package	Standard Plywood Case
Specification	32mm
Trademark	Y&L
Origin	Shanghai, China
HS Code	8413709990
Production Capacity	500 Sets Per Month

Packaging & Delivery

Package Size200.00cm * 165.00cm * 150.00cm Package Gross Weight1500.000kg

Product Description

Diesel Engine Single Stage Horizontal End Suction Centrifugal Pump
Introduction

DA series centrifugal Pump /bomba is specialized in pumping water, liquid, chemical substances, etc. With compact structure, its working diameter ranges from 50mm to 300mm, each model of our product has 4-5 impellers with different sixes, the rotation speed is 1450rpm, 170rpm, 2900rpm, 3500rpm for optional. This water pump can be widely used in farmland irrigation, fire water supply, urban drainage, cooling water circulation for air conditioner, sewage treatment and other fields.

Technical Parameters
Pump and Parts Material

Application
1. Constructional Engineering: Clear water transportation, pressurization system, air condition water circulation system, fire extinguishing system, swimming pool and water circulation system. 2. Industry: Circulating cooling system, process water for paper-making and paper pulp, steel production, shipbuilding, sea transportation and other manufacturing industry. 3. Mining Industry: Water supply, mine drainage, generating station, etc. 4. Others: Municipal water supply, agricultural irrigation and some others.

Our Service
1. Quality: We will test our pump before delivery, and we will follow up the pump working conditions per three months when the pump put into use. If you need spare parts, we can send to you in 1 or 2 weeks. 2. On-sales Service: We will clear show you everything in fact when you place an order with us. We will take photos or videos to show you our production situation, and report the production situation to you. 3. Package: We use plywood case to pack our pump, which is durable for ocean transport. 4. Delivery: Delivery time will be on time as the contract. Usually, our company need 25 working days for diesel engine pump, and for bare shaft pump, it takes 15 working days, 5. Warranty: 12 month for the pump body, 3 month for the main working parts.

Our Team


Our Factory
Shanghai Y&L Pump Co., Ltd was found in 2002, which is located in Shanghai. We producing water pumps for more than 10 years, especially self priming pump, diesel engine pump and diaphragm pump. We have an office in Wenzhou which called Wenzhuo Defu Machinery Co., Ltd. Product Description Product Parameters

DA Model	Capacity	Head	Speed	Power		Impeller Dia.
				Shaft	Motor
	m3/h	m	r/min	kw	kw	mm
DA32/26	16.2	89.3	2900	11.76	15	264
	27.0	82		14.52	18.5
	32.4	75.3		16.28	18.5
DA40/26	21.6	93	2900	13.67	15	264
	36.0	86.5		16.62	18.5
	43.2	81.5		18.08	22
DA50/20	36.0	62	2900	10.48	15	214
	60.0	56		13.07	15
	72.0	51		14.70	18.5
DA65/26	72.0	98	2900	30.49	37	264
	120.0	89.9		39.95	45
	144.0	82.3		45.12	55
DA80/26	114.0	95	2900	45.01	55	264
	190.0	83.5		57.59	75
	228.0	74		63.79	75
DA100/20	171.0	58.7	2900	39.04	45	214
	285.0	50.1		48.59	55
	342.0	42		52.49	75
DA125/20	216.0	56.5	2900	55.84	75	214
	360.0	49		64.89	90
	432.0	42.5		68.94	90
DA32/26	6.6	23.7	1450	1.42	2.2	264
	11.0	22.4		1.76	2.2
	13.2	21.4		1.92	3
DA40/32	10.8	37.5	1450	3.56	5.5	329
	18.0	35.6		4.36	5.5
	21.6	33.8		4.73	5.5
DA50/32	30.2	35.6	1450	5.64	7.5	329
	50.4	31.1		7.36	11
	60.5	27.8		8.32	11
DA65/32	39.0	37	1450	7.28	11	329
	65.0	34		9.40	11
	78.0	31.7		10.36	15
DA80/40	60.0	56.5	1450	17.92	22	409
	100.0	52.2		23.11	30
	120.0	47.8		25.52	30
DA100/40	90.7	56.8	1450	22.62	30	409
	151.2	51.8		30.03	37
	181.4	47		34.39	45
DA125/50	172.8	95.1	1450	75.82	90	525
	288.0	93.8		103.58	132
	345.6	91		118.09	160
DA150/50	289.4	98	1450	115.25	132	525
	482.4	93.8		156.91	200
	578.9	89.5		178.53	200
DA200/50	414.7	88.5	1450	153.71	200	525
	691.2	84		195.13	250
	829.4	80.2		219.50	250
DA250/50	587.5	87.5	1450	199.92	250	525
	979.2	81.5		260.18	315
	1175.0	75.5		284.12	315
DA300/40	702.0	49.5	1450	137.09	160	409
	1170.0	40.8		149.37	200
	1404.0	38.7		170.01	200

Pump Casing	Grey Cast Iron; Nodular Cast Iron; Stainless Steel 304/316/316L
Impeller	Grey Cast Iron; Bronze; Stainless Steel 304/316/316L
Shaft	Stainless Steel; Chrome Steel
Shaft Sleeve	Stainless Steel
Casing Ring	Grey Cast Iron; Bronze
